Chinese's leading welded wire mesh supplier, we have the widest range of mild steel wire mesh, galvanised wire mesh and stainless steel welded mesh available from stock. From the lightest welded mesh rolls up to heavy industrial wire mesh panels, we will have a wire mesh suitable for all your application requirements.
Materials: mild steel wire, stainless steel wire, galvanized wire.
Weave and features: galvanized after weaving and galvanized before weaving.
Finish: electric galvanizing, hot-dip galvanizing, or pvc-coated.
Application: welded wire mesh with excellent corrosion resistance and oxidation resistance extensively used fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.
Welded wire mesh is widely used in domestic and industrial applications. In workshops or factories, security mesh can be used for window grilles or as machinery guards. In warehouses, welded mesh can be used for racking, storing and anti-collapse mesh. Use it in your garden for your plants and creepers or for animal care as aviary, rabbit and kennel mesh and other protective enclosures. In farming, feed racking systems, rearing cages etc. are often built with welded mesh. It can also be utilised in construction, civil engineering and transportation in addition to architectural mesh applications such as walkways, balustrades and cladding.
We also offer a range of mesh clips, netting fasteners, winders and other accessories for joining mesh panels and for fixing Weldmesh to brickwork or racking. Reinforcing mesh and wire fabric for concrete is available.
We provide a welded mesh "cut to size" service.
Specification List of Welded Wire Mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request |
Galvanized Fencing Mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. |

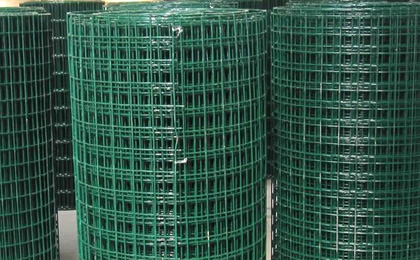

PVC Coated Welded Mesh: | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
Our technological expertise and commitment to providing our customers with consistent quality products enable us to become a long term partner for your business.
