Razor Wire

Crossed Rarbed Wire
Two pieces of stainless razor wire or zinc-coated razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an intersecing shape after opening with beautiful feature and practicality.

Single coil barbed Wire
Single coil barbed tape wire is installed without cilps,it runs in natural loops on walls.Costless and can be easily installed.

Straight Razor Barbed Wire
There are many ways for straight type razor wire installing.The straight type razor wire can be installed quickly it.can not only save expenditure but also reach the result of frightening and stopping.

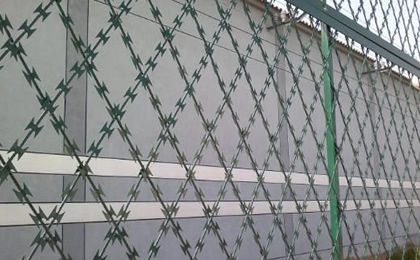

Razor Wire Mesh Fence
Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very beautiful.It can be used for guard net of fence ,doors and windows and also can be used in military.The specification can be designed as the customers'need.

Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	8M	CBT-65	Single coil
500mm	41	10M	CBT-65	Single coil
700mm	41	10M	CBT-65	Single coil
960mm	53	13M	CBT-65	Single coil
500mm	102	16M	BTO-10.15.22	Cross type
600mm	86	14M	BTO-10.15.22	Cross type
700mm	72	12M	BTO-10.15.22	Cross type
800mm	64	10M	BTO-10.15.22	Cross type
960mm	52	9M	BTO-10.15.22	Cross type
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel. Standard packages products are shown in the tables above, special specifications available on request.

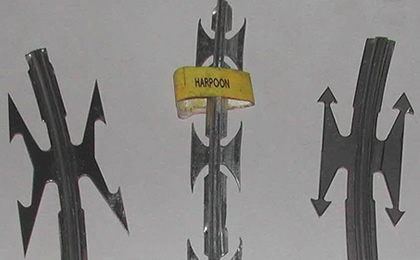

Reference Number	Blade Style	Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28		0.5±0.05	2.5	28	15	45±1
BTO-30		0.5±0.05	2.5	30	18	45±1
CBT-60		0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	100±2
