Gabion Box

Gabion box is made from the woven wire mesh. Its also called as gabion mesh, gabion basket.

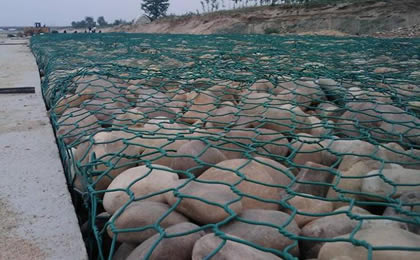

Its widely used for the protection of slope, mountain, railway and highway.

The main raw material for Gabion box:

1)Hot dipped galvanized wire,with heavy zinc. (zinc weight from 60g-300g/m2)
2)PVC coated hot dipped galvanized wire;
3)Gal wire(Zn+5%Al or Zn+10%Al)
4)PVC coated wire.

Specification：

Gabion material: Galvanzied wire / Pvc wire
Wire diameter: 2.2MM  2.7MM  3.05MM
Gabion size: 1*1*1M, 2*1*0.5M, 2*1*1M, 3*1*1M, 3*1*0.5M, 4*1*1M, 4*1*0.5M etc, or customized is available.
Mesh size: 60*80mm, 80*100mm, 90*120mm, 90*110mm, 100*120mm, 150*120mm
